The Hino 700 Series

Leading edge truck design meets world-class quality and reliability. Underwritten by Toyota, the world’s most successful car manufacturer, the Hino 700 Series is strong across the board with advanced features that actively support safety, driveability, and performance. The Hino 700 Series – the big truck with a lot to like.

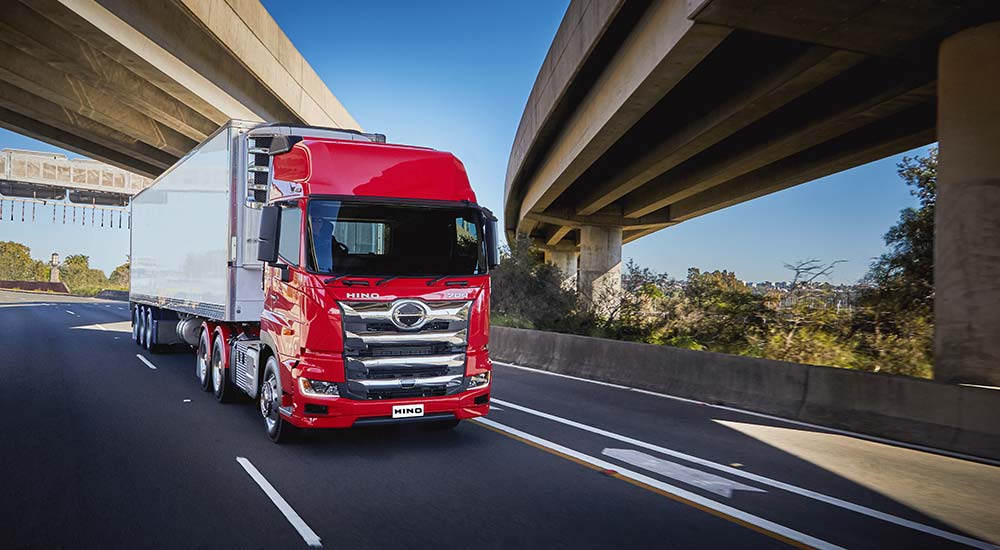

Safety

The safest hino ever made

Introducing an enhanced Hino SmartSafe* package with lane departure warning, adaptive cruise control, collision avoidance, and alert systems. Complete with driver monitor, these features combine to make the 700 Series the safest Hino ever made*. Backed by an advanced Electronic Braking System (EBS) and Vehicle Stability Control (VSC), your new truck is built to support the safety of every road user.

Driver monitor

Keep your drivers safer with our all-new driver monitor*. This provides constant monitoring of the driver’s attention towards the road using a camera integrated into the A-pillar to detect driving posture, face orientation, and eyelid movement.

Pre-collision system

Radar and image sensors detect the possibility of a collision with a vehicle in front, pre-emptively warning the driver to apply the brakes. In the absence of a driver response, the truck will brake autonomously.

Lane departure warning

Visual and audible alerts warn drivers if the vehicle deviates from its lane without turn indicators being engaged.

Pedestrian detection

An advanced pre-collision feature, designed to protect pedestrians through the use of both visual and audible driver alerts. If a collision is imminent, the vehicle will brake autonomously.

Vehicle stability control

Designed to help drivers maintain vehicle control and help prevent the truck from rolling over or sliding when entering or exiting a corner too fast.

Electronic braking system

EBS replaces driver brake pedal adjustments to deliver a more consistent stopping performance, keeping the truck stable and steerable even during emergency braking on slippery roads.

Reversing camera

Cameras deliver an improved driver rear-view, while sensors detect objects in the path of a reversing vehicle and sound an alert for pedestrians and cyclists.

Daytime running lamps

LED daytime running lamps ensure you’re easily seen wherever you are. LED headlights feature an auto setting, which senses low light conditions and automatically switches on the headlights.

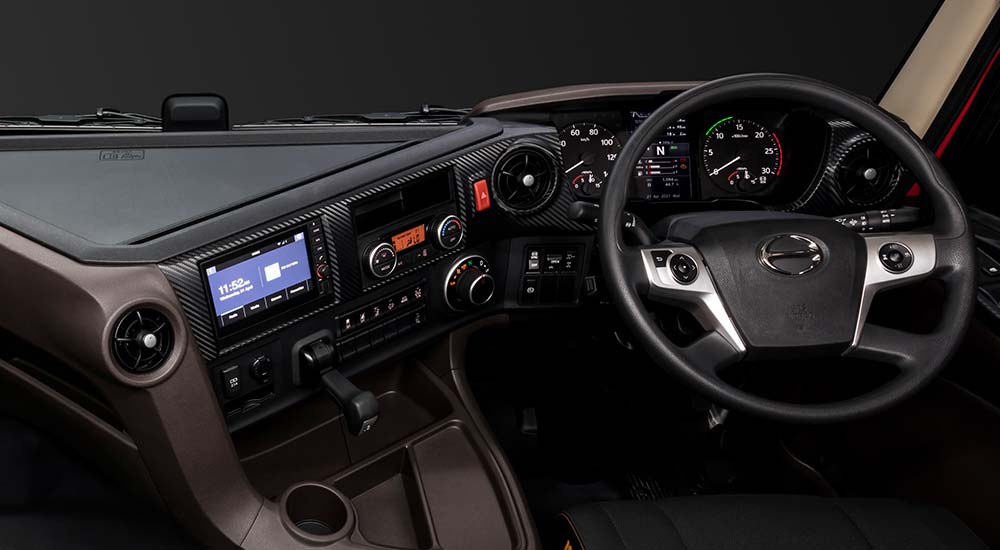

Technology

Harnessing the latest technology

Equipped with an intelligent multimedia unit, easy-to-read instrument panel, adaptive cruise control, and the full Hino SmartSafe* package, the 700 Series features advanced innovation and places key information at the driver’s fingertips. Designed to make driving easier, more comfortable, and more enjoyable, the all-new Hino cab is a workspace you’ll want to spend time in.

Intelligent multimedia unit

Engineered with reduced axle weight and a lighter 6-rod suspension to extend payload, the new range also provides an outstanding double-drive suspension system with cross locks on both front and rear axles for improved off-road performance.

Driver instrument panel

The 7” LCD Multi-Information Display provides safe and easy access to important information such as the Hino SmartSafe* settings, driving economy, gear selection, and vehicle maintenance data.

Adaptive cruise control

The advanced driver assistance system has been designed to automatically adjust truck speed, maintaining a safe distance from vehicles ahead, keeping within the speed limit, and increasing fuel efficiency through a more consistent driving speed.

Hino smartsafe*

An extensive suite of driver-assist technologies that actively focus on protecting the driver, passengers, and other road users.

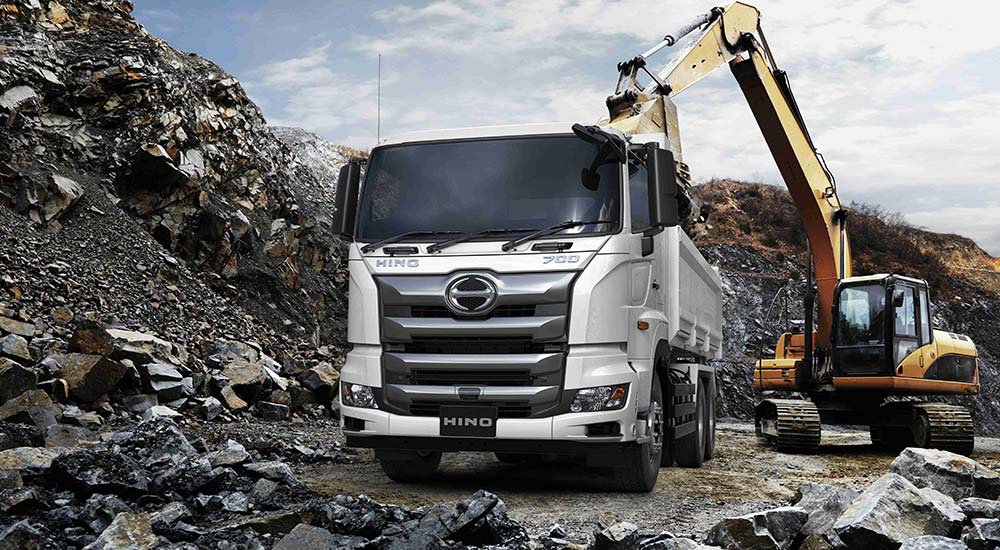

Performance

Maximum performance for the toughest jobs

Improved off-road performance and a better ride, the 700 Series delivers big trucks that rise to every occasion. A lighter suspension and reduced axle weight extends payload capacity, while cross locks on front and rear axles add strength where it counts. With greater driveability, less wear on the brakes, and a Euro 6-compliant engine, your Hino 700 will be the gift that just keeps on giving. that just keeps on giving.

Stay ahead of the game

Improved fuel economy with up to 99% reduction in the emission of pollutants, our new range meets stringent Euro 6 emission standards for heavy-duty vehicles. Cleaner for the environment, more sustainable for your business.

Powerful engine

Offering additional engine power ratings all the way up to 480hp and 2,157Nm of torque, the 700 Series has plenty of pulling power and enough grunt for the toughest of jobs.

Improved driveability

Available with true automatic or an automated manual transmission (AMT) plus transmission intarder† to offer greater driveability. Combined with load share on the front suspension, the Hino 700 Series delivers a better overall ride. Manual transmission available in Euro 5 models.

Extended payload

Comfort

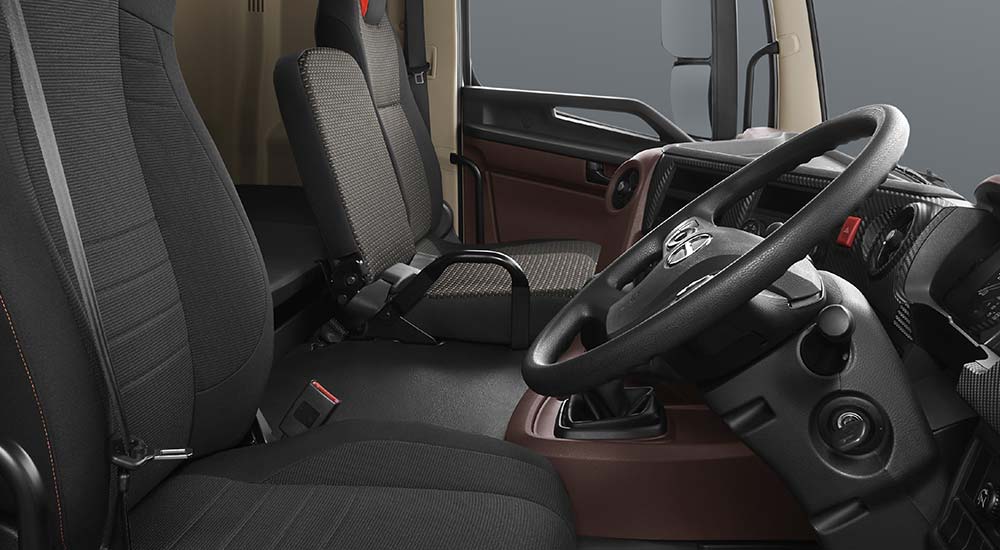

A driver-centric workspace

Increased comfort and practicality have been built into the all-new Hino cab with every detail designed to improve your overall driving experience. From the upgraded cab suspension and soundproofing to the beautifully modern, ergonomically designed interior, this is a workspace designed with the driver in mind.

ergonomically designed interior

A cleverly styled, ergonomically designed interior wraps around the operator, optimising the interaction between the driver and the environment. Placing controls and displays within easy reach, the design and layout supports driver productivity, reducing distraction and fatigue.

reconfigured steering controls

The tilt and telescopic steering wheel makes it easy to set the perfect driving position while new steering wheel-mounted controls allow for safe and easy operation of key functions.

premium seat

The latest NTSC 2 Isringhausen air suspension seat offers easy electronic seat adjustments that actively support the driver throughout the day’s work, keeping drivers comfortable and relaxed from first load to last.

increased leg room

Coupled with the fully adjustable superior seat, increased leg room provides additional comfort to drivers of all heights and builds, up to and over six feet tall.

easy-to-read displays

Brand new displays in the new 700 Series provide critical driving information at a glance. Designed to support the safety of all road users by minimising distractions and keeping the driver’s eyes on the road.

improved cab suspension

Offering a comfortable ride, no matter what the terrain. The addition of an independent shock absorber system in the cab rear improves suspension, putting the driver experience first.

soundproofed cab

Double down on a quieter ride with a soundproofed cab to reduce outside distractions, whether the operator is navigating a busy work site or enjoying life on the open road.

easier access

A superior step system with conveniently placed full-length cab grab handles eases entry and exit for operators, improving health and safety by reducing the risk of slip-and-fall situations.

^*Disclaimer: Active safety systems are an aide to assist the driver and have performance limitations. Please refer to owner’s manual for system operations and functionality. Hino SmartSafe is currently available on 4×2 and 6×4 models only. Available on 8×4 models from MY23 production onwards.

^† Transmission intarder only on FY1E & FS1E models.

^‡ Load share only on 8×4 models only.

Transmission

The 700 Series is available with true automatic or automated manual transmissions (AMT).

The outstanding ZF 16 TraXon AMT is recognised for its ease of use, long-term durability, and ability to significantly reduce fuel consumption when driven under certain conditions. Featuring 16 forward gears and two reverse ratios, the fully automated manual requires no clutching by the driver. The transmission is fully electronically controlled, with the ability for the driver to select a sequential manual mode for on-demand shifting.

Manual transmissions are available in the Euro 5 models.

Offering additional power ratings all the way up to 480hp and 2,157Nm of torque, the 700 Series has plenty of pulling power and enough grunt for the toughest of jobs.

Safety

Hino’s 700 Series heavy-duty trucks have the important safety feature of cabin strength certification to ECE-R29 crash test standards, and Front Underrun Protection (FUP) as standard equipment.

Introduced into the new FS models: An enhanced Hino SmartSafe package with Lane Departure Warning, adaptive cruise control, collision avoidance, and alert systems. Complete with Driver Monitor, these features combine to make the 700 Series the safest Hino ever made. Backed by an advanced Electronic Braking System (EBS) and Vehicle Stability Control (VSC), your new truck is built to support the safety of every road user.

Environment & Economy

The Hino 700 Series meets the high demands of heavy-duty trucking while considering our environment.

Our 700 Series meets the most stringent Euro 6 emission standards for heavy-duty vehicles across our entire range. Offering improved fuel economy with up to 99% reduction in the emission of pollutants, the 700 Series is cleaner for the environment and more sustainable for your business.

Durability

The Hino 700 Series meets the internationally recognised European Structural Standards Regulation No. 20 (ECE-R29) for cabin strength, offering you peace of mind.

Engineered with a lighter 6-rod suspension and reduced axle weight, the Hino 700 extends payload capacity. The 6-rod bogie provides an outstanding double-drive suspension system with cross locks on both front and rear axles for improved off-road performance – strength where it counts.

FS and FY 480hp models include a transmission intarder which offers greater driveability and wear-free braking without fade, relieving pressure and reducing maintenance on service brakes. Combined with the FY’s load share on the front suspension, the Hino 700 Series delivers a better overall ride.

Comfort

With a number of ergonomic features to enhance driver comfort and reduce fatigue, the Hino 700 Series cabin is one of the most inviting workplaces in the heavy-duty class.

Increased comfort and practicality have been built into the all-new Hino cab with every detail designed to improve your overall driving experience.

The Hino 700 Series puts the driver first. Improved cab suspension delivers a comfortable ride no matter what the terrain. A cleverly-styled, ergonomically-designed interior wraps around the operator, equipped with easy-to-read displays, the latest NTSC 2 Isringhausen seat, and increased leg room – keeping the driver comfortable from first load to last.

Choose your model

6×4

8×4

4×2

700 Series Standard

700 Series Wide

HINO 700 SERIES

Standard

STANDARD FEATURES

26,000kg GVM
320hp
6 Speed Auto
Leaf Spring Suspension

View The Full Range View Video

HINO 700 SERIES

WIDE

STANDARD FEATURES

18,000 – 28,300kg GVM
480hp
16 Speed AMT
Leaf Spring or Air Suspension

View The Full Range View Video

700 Series Standard

700 Series Wide

HINO 700 SERIES

Standard

STANDARD FEATURES

30,000kg GVM
360hp
6 Speed Auto
Leaf Spring Suspension

View The Full Range View Video

HINO 700 SERIES

WIDE

STANDARD FEATURES

32,000kg GVM
480hp
16 Speed AMT
Leaf Spring or Air Suspension

View The Full Range View Video

700 Series Wide

HINO 700 SERIES

WIDE

STANDARD FEATURES

18,000kg GVM
450hp
16 Speed AMT
Air Suspension

View The Full Range

Model Specifications

Filter models

Axle Config:

GVM (KG):

Horsepower:

Wheelbase (MM):

Transmission:

wdt_ID	Model	Axle Config.	GVM (KG)	HP	Transmission	Rear Suspension	Wheelbase (MM)	Transmission FILTER

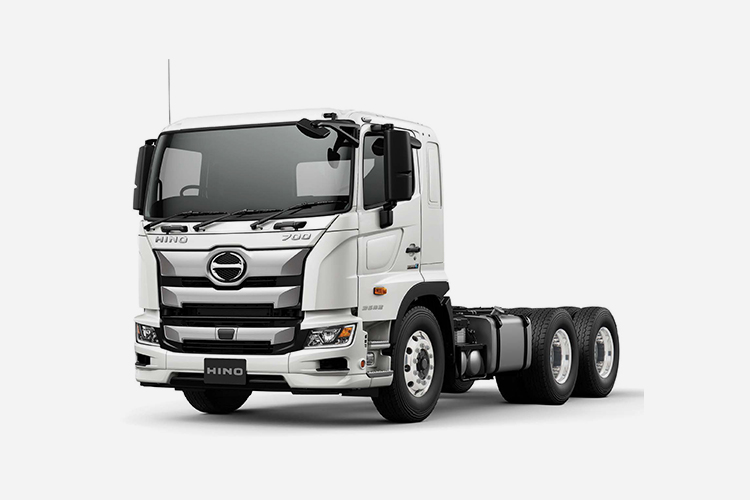

1	FS 2632 AT LEAF 4575	6x4	26,000 / 18,000	320	6 SPEED AUTO	LEAF SPRING	4,575	AUTOMATIC
2	FS 2632 AT LEAF 5475	6x4	26,000 / 18,000	320	6 SPEED AUTO	LEAF SPRING	5,475	AUTOMATIC
3	FS 2848 AMT LEAF 4275	6x4	28,300 / 18,000	480	16 SPEED AMT	LEAF SPRING	4,275	AMT
4	FS 2848 AMT AIR 4275	6x4	28,300 / 18,000	480	16 SPEED AMT	AIR	4,275	AMT

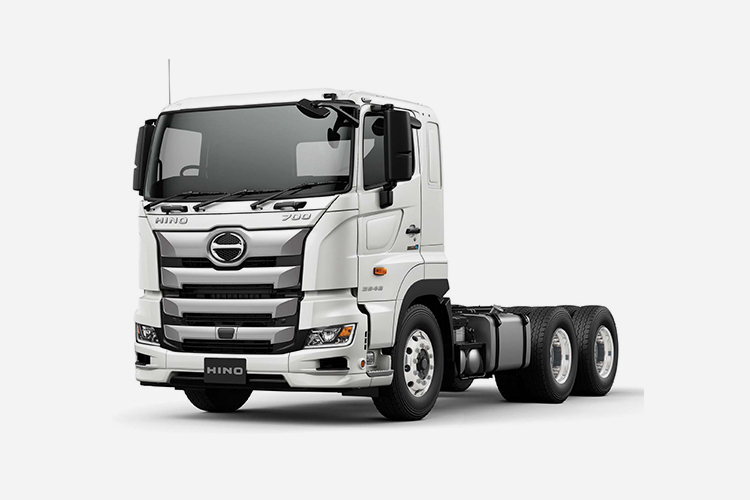

5	FS 2848 AMT AIR 4575	6x4	28,300 / 18,000	480	16 SPEED AMT	AIR	4,575	AMT

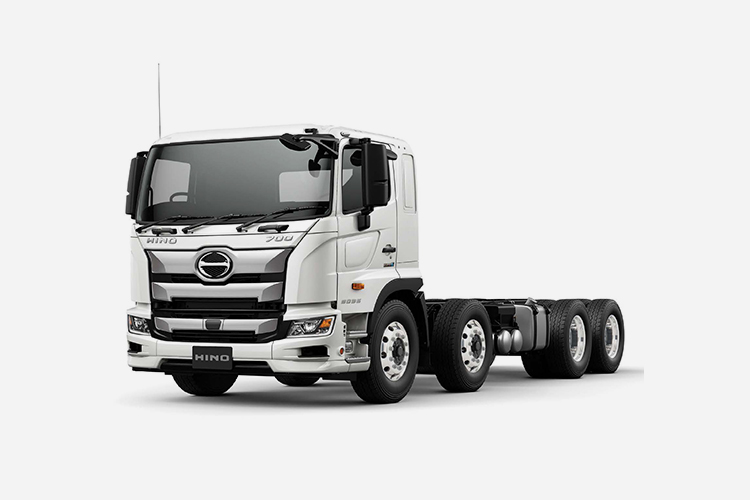

7	FY 3036 AT LEAF 5925	8x4	30,000	360	6 SPEED AUTO	LEAF SPRING	5,925	AUTOMATIC
8	FY 3248 AMT LEAF 5925	8x4	32,000	480	16 SPEED AMT	LEAF SPRING	5,925	AMT

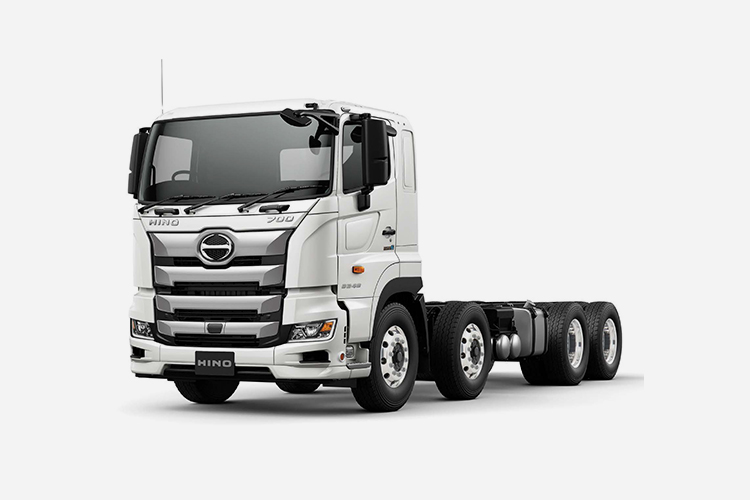

9	FY 3248 AMT AIR 5925	8x4	32,000	480	16 SPEED AMT	AIR	5,925	AMT
20	FS 2632 AT AIR 6375	6x4	26,000 / 18,000	320	6 Speed Auto	AIR	6,375	AUTOMATIC
19	FS 2632 AT AIR 5475	6x4	26,000 / 18,000	320	6 Speed Auto	AIR	5,475	AUTOMATIC
17	FS 2632 AT AIR 4575	6x4	26,000 / 18,000	320	6 SPEED AUTO	AIR	4,575	AUTOMATIC

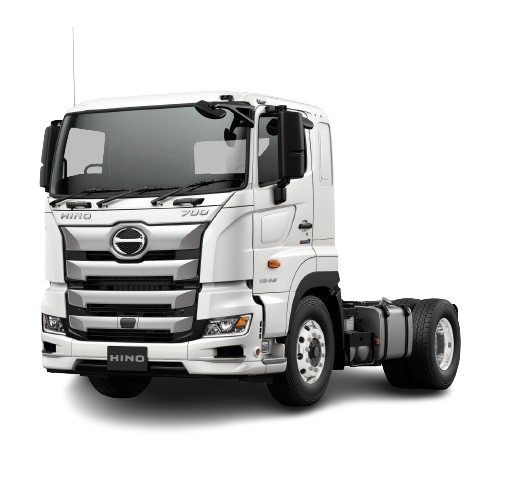

18	SH 1845 AMT AIR 3450	4x2	16,000 / 12,000	450	16 SPEED AMT	AIR	3,450	AMT
		Axle Config.	GVM (KG)	HP			Wheelbase (MM)	Transmission FILTER
