The Hino Hybrid Range

The Hino Hybrids are light-duty trucks built for efficiency, economy, and the environment.

These Electric-Diesel Hybrids offer unique specifications which increase business efficiency by improving fuel efficiency and reducing your carbon footprint. They also include Hino SmartSafe, a comprehensive safety package found in all 300 Series 4×2 trucks.

Hybrid

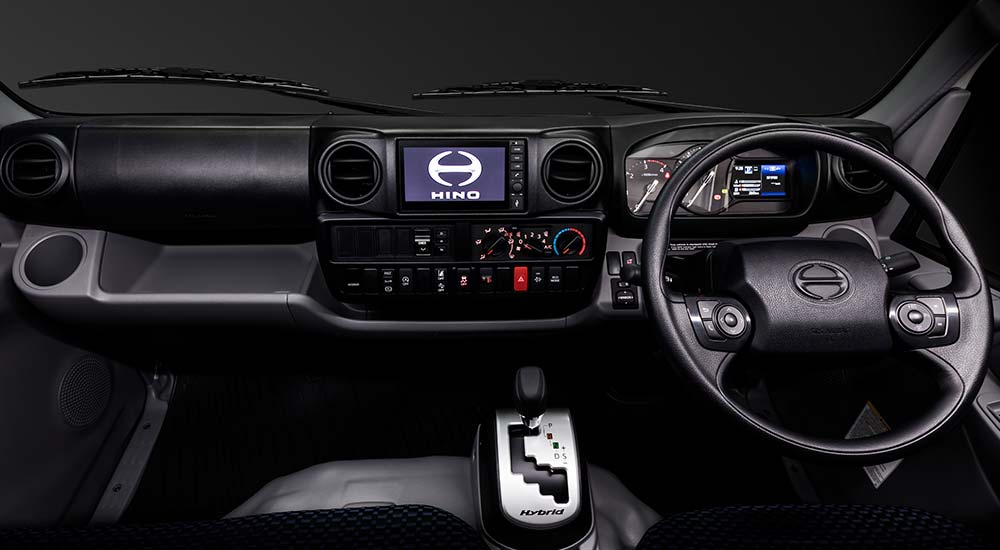

Transmission

The Hino Hybrid 300 Series has a clutchless system. The ProShift 5 automated manual transmission employs an electronic control unit to control the changing of gears.

In Drive mode, this hybrid truck can be driven like a conventional automatic transmission truck (easy two-pedal operation). Gear changes are executed to suit driving conditions and hybrid system mode settings. The operation of the hybrid drivetrain is optimised in this mode, contributing to significant fuel consumption savings.

Drivers may also select Sequential mode – to select gears manually to suit their driving style or to hold gears in circumstances such as long steep descents. Hino’s ProShift AMT has been designed so that it’s easy to drive, requires low maintenance, and provides long service life.

Hybrid

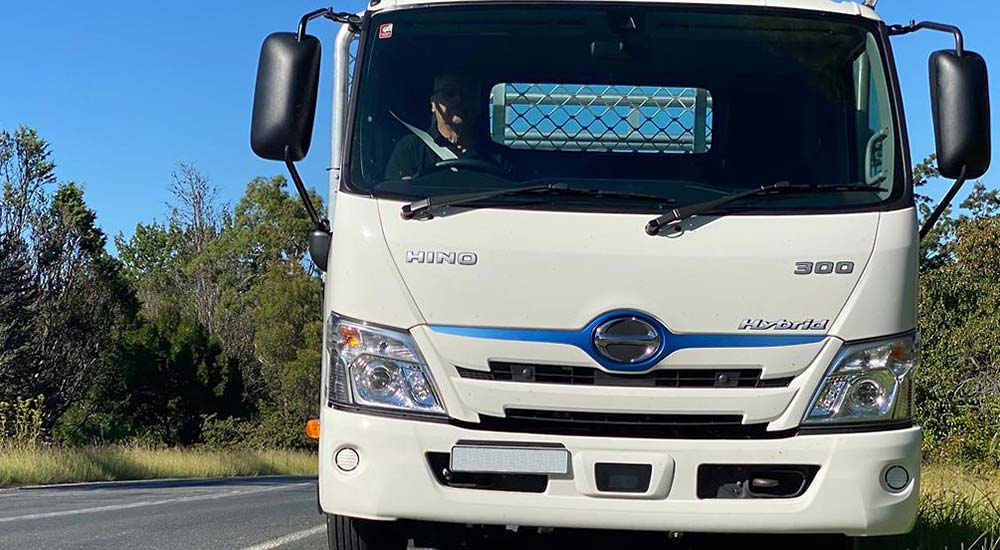

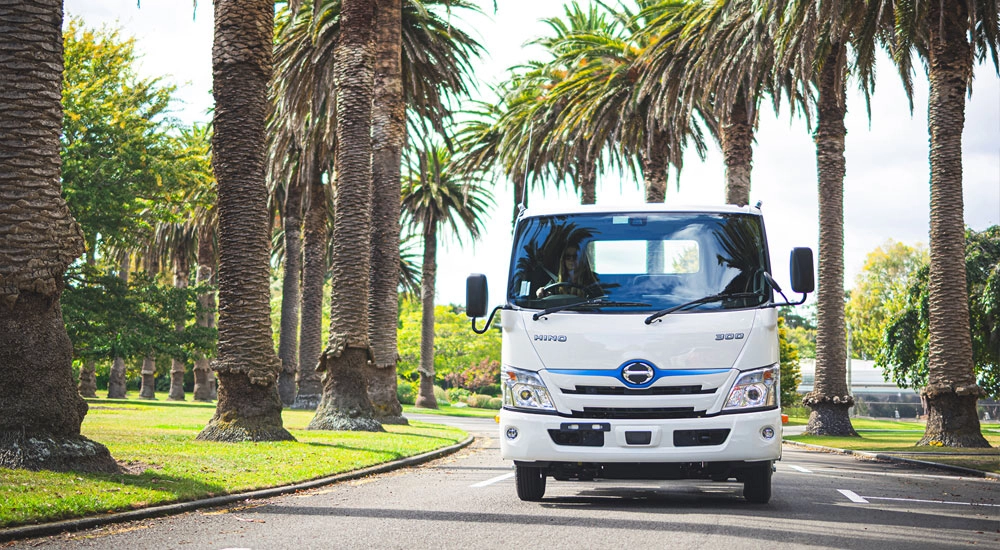

Safety

Packed with advanced active safety features, our 300 Series hybrid truck offers reduced blind spots, serious braking systems, and crush-resistant, energy-absorbing technology.

Wide front and side windows, low instrument panel, large rear-view mirrors, specially shaped automatic cornering halogen lamps, and bumper-inset fog lamps contribute to ease of driving in any condition. Vehicle Stability Control (VSC) is standard, with four-wheel ventilated disc brakes, ABS braking, Electronic Brake-force Distribution (EBD), and Brake Assist (BA) providing stable braking under all load conditions.

Outside, the high rigidity cabin is extremely crush-resistant. Sturdy side door impact beams also increase your level of protection. Inside, the energy-absorbing steering wheel and column, driver and passenger’s air bag, and pretension seatbelts minimise shock and injury.

Hybrid

Environment & Economy

Our electric hybrid light-duty truck produces low emissions, maximises efficiency, reduces fuel consumption, and gives you low-maintenance and trouble-free driving.

Using Hino’s ProShift 5 automated manual transmission, the relocated clutch means the truck can start off from standstill. The clutch may be decoupled to maximise kinetic energy recovered by the electric generator, resulting in increased energy efficiency and reduced fuel consumption.

The Hino Hybrid 300 Series uses a nickel-metal hydride (NiMH) battery. Worldwide, the same Toyota Group battery technology has been used in over 3 million hybrid vehicles – proof of Hino’s reliability, safety, and durability, even in high current applications. With resilience to overcharging and their low cost, you are assured of long life and maintenance free operation.

Hybrid

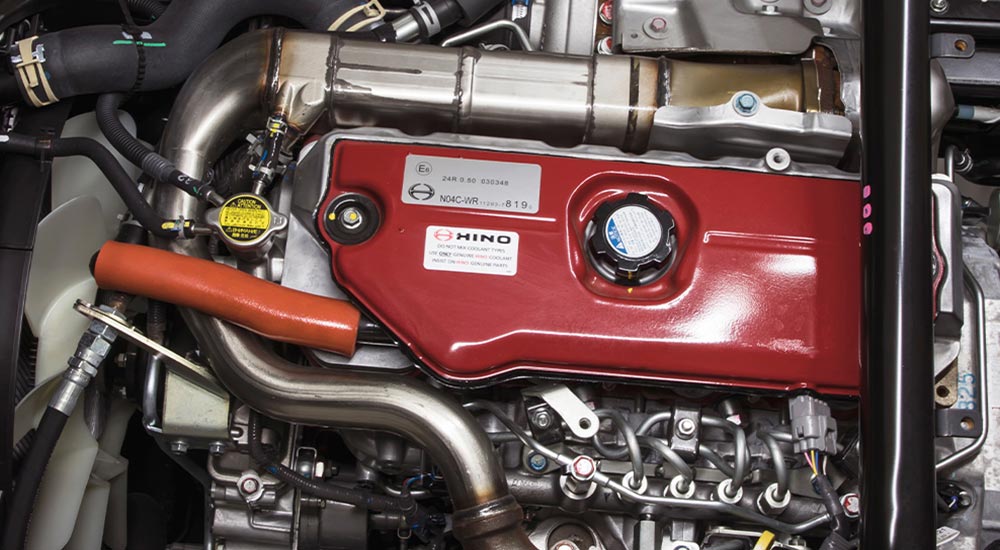

Durability

The Hino 300 Series is known for its strength and durability.

With the same 6mm thick frame as many medium-duty trucks, they ride on one of the strongest frames in its class. Supported by a powerful suspension system, Hino trucks are highly resistant to twisting, bending, and stresses created by heavy loads and rough roads. The cab uses galvanised steel sheeting treated with a cathodic electrode position coating.

The single-sheet floor panel and waterproof connectors also assist in producing the ultimate in anti-corrosion construction. The rear axle employs a 13-inch differential (GVM over 8,500kg), matching those used in medium-duty trucks, and proof that the Hino 300 Series is tough enough to handle heavy loads.

Hybrid

Comfort

Ergonomically and intuitively designed with the driver in mind, the Hino 300 Series hybrid truck has optimised cab space for room and comfort.

From the ease of standard and wide cab access, high roof, ample legroom, tilt and telescopic steering, and sliding/reclining seat to larger cab mounts and thicker leaf springs that reduce friction and absorb shocks from the road, features have been designed inside and out to give drivers what they need to perform at their best.

The Hybrid 300 Series includes wide free rack, centre and overhead consoles, door pockets, and upper and lower glove boxes for handy storage and access to items. A variety of convenient options such as air conditioning and a choice of audio systems are also available.

Choose your model

4×2

Standard

Wide

Hino Hybrid

Standard

STANDARD FEATURES

  • 5,995kg GVM
  • 150hp
  • 6 Speed AMT
  • Leaf Spring Suspension
View The Full Range View Video

Hino Hybrid

Wide

STANDARD FEATURES

  • 5,995-8,500kg GVM
  • 150hp
  • 6 Speed AMT
  • Leaf Spring Suspension
View The Full Range View Video

Model Specifications

Filter models

wdt_ID Model Axle Config GVM (KG) Horsepower Transmission Rear Suspension Wheelbase (MM) Spec Sheet Chassis Drawing Transmission FILTER

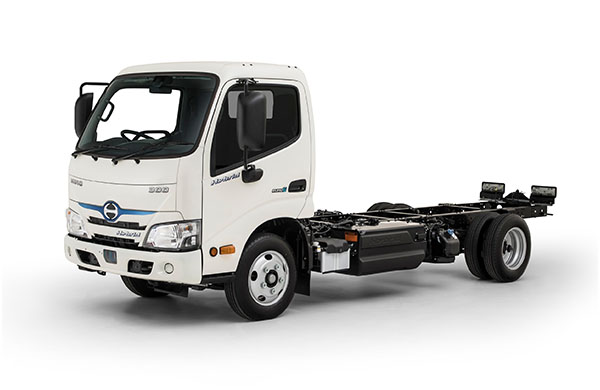

1 615 AMT 3375 STD HYBRID 4x2 5,995 150 6 SPEED AMT LEAF SPRING 3,375 AMT

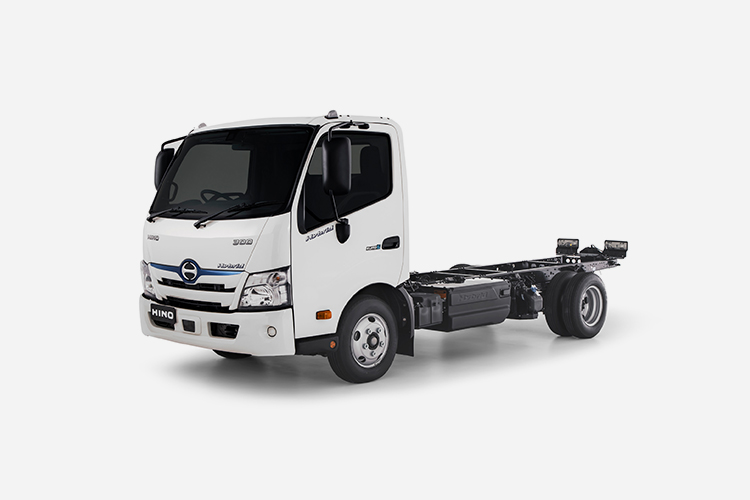

2 915 AMT 3870 WIDE HYBRID 4x2 8,500 / 5,995 150 6 SPEED AMT LEAF SPRING 3,870 AMT
4 615 AMT 3430 WIDE HYBRID 4x2 5,995 150 6 SPEED AMT LEAF SPRING 3,430 AUTOMATIC
5 715 AMT 3430 WIDE HYBRID 4x2 6,500 / 5,995 150 6 SPEED AMT LEAF SPRING 3,430 AUTOMATIC
Axle Config GVM (KG) Horsepower Wheelbase (MM) Transmission FILTER
