The Hino 500 Series

The Hino 500 Series offers the New Zealand market an ideal base for hiab trucks, tipper trucks, and concrete mixers – tough, durable, and ready to face any challenge you throw at them.

{field 1}

Safety

An Unbeatable safety package

While safety packages between the Standard and Wide Cab variants differ, the Hino 500 Series is stacked with the best features offered from Japanese trucks in the NZ market. Backed by an advanced Vehicle Stability Control (VSC) system, these trucks have what it takes to ensure you make it home safe.

{field 1}

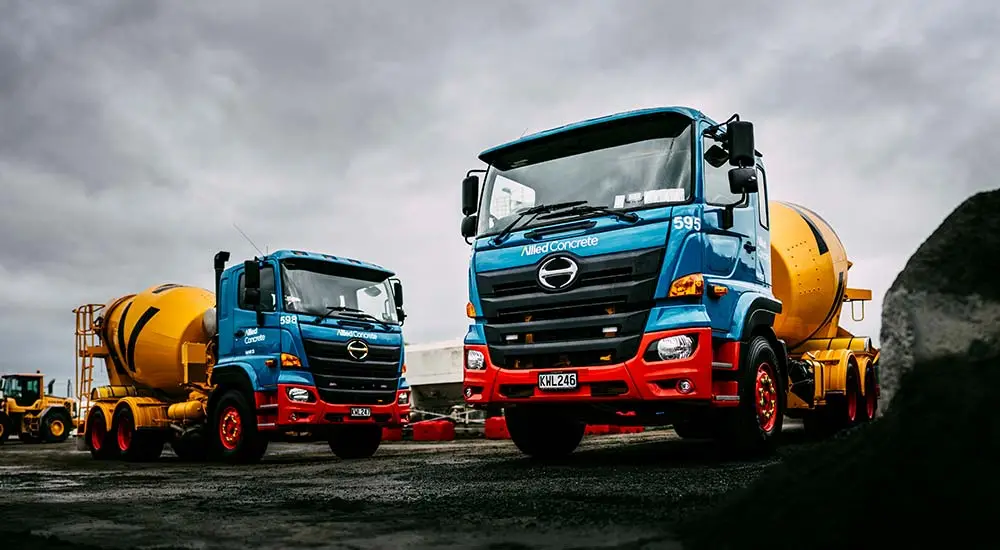

Performance

Maximise Power And Performance

Delivering a mix of Euro 5 and pPNLT emissions standards, the 500 Series provides the ideal combination of power and efficiency. The medium-duty truck boasts an expanded transmission range offering the choice of 6, 7, 9, and 11-speed manuals with three different 6-speed automatic variants specifically suited to the different engines and applications.

{field 1}

Comfort

Designed For Driver Comfort

The Hino 500 Series is ergonomically designed with the driver in mind. From small trucks to big, Hinos are designed for the driver experience. A carefully considered dashboard, an easily accessible cabin, and the truck’s air suspension helps absorb vibrations from road bumps too.

Transmission

Expanded transmission range offering the choice of 6, 7, 9, and 11-speed manuals with three different 6-speed automatic variants specifically suited to the different engines and applications.

To complement the Hino manual and automatic models, the FE 1426 can come with the Hino ProShift 6 AMT transmission. This AMT features a two-pedal only driveline and has no clutch pedal. The mechanical clutch operation is controlled by the on-board computer and shift actuator. Clutch components are subjected to significantly less wear than conventional manual transmission models.

Available across our medium duty cab range, the 6-speed automatic transmissions are fuel-efficient Allison units with a push button shift selector.

Safety

The Hino 500 Series trucks offer an unbeatable active and passive safety package, with safety features including ABS Anti-lock brakes, Easy Start system, and driver’s SRS airbag as standard.

Front Under-run Protection (FUP) technology is incorporated in our standard bumper bar to protect other motorists by preventing their vehicle becoming trapped and crushed under the front of the truck in the event of a front-on collision.

FUP also provides additional protection for the truck’s steering components, helping the driver maintain control and come to a safe stop. You will also have peace of mind knowing your truck is extremely crush-resistant. The cabin meets the internationally recognised European Structural Standards Regulation No. 20 (ECE-R29) for cabin strength.

Environment & Economy

Our Hino 500 Series is designed for fuel-efficiency and low emissions, while delivering powerful driving performance, high durability, comfort, and transport quality.

The reliability of our medium-duty trucks reflects our reliability as a business partner. Clean-burning emissions compliant engines offer flexibility with GVM ranging from 10,400kg to 26,000kg. Employing a common rail system for optimum control of the fuel injection process and a high-efficiency exhaust gas recirculation system to reduce combustion temperature, the 500 Series achieves almost complete combustion.

The Euro 5 engines are equipped with a variable nozzle turbo charger, contributing to precision air control, cooling efficiency, and low-pressure loss – all of which helps with your bottom line.

Durability

The Hino 500 Series is known for its high level of durability and reliability, meeting the best potential under harsh conditions.

Our trucks are tested on a range of systems for fuel efficiency, driving, and cold weather performance. The truck’s air suspension helps absorb vibrations from road bumps achieving transport quality while the taper-leaf suspension is designed to produce less inter-leaf friction to deliver a flat riding feeling and high durability.

We also evaluate the functions of parts and the characteristics of resin polymers on test benches. Only after passing test drives that exceed tens of thousands of kilometres are our trucks delivered to you.

Comfort

All Hino trucks are ergonomically designed to provide a cabin with ease of access, plenty of legroom, and controls at your fingertips.

The 500 Series offers clear-vision instruments, a tachometer, speedometer, remote central locking, and full suite of warning gauges and lights. All models have factory-fitted Denso air conditioning, cruise control, and remote central locking with an integrated engine immobiliser and power-operated windows.

The seat can be configured to the body type of any driver with fully air adjustable height, rake, cushion tilt, backrest, lumbar support, side bolsters, and weight settings. Integrated seat-mounted seatbelts mean the seatbelt adjusts with the motion of the driver, preventing painful belt-tightening that can occur with cheaper, pillar-mounted belts.

Choose your model

4×2

6×2

6×4

500 Series FC

500 Series FD

500 Series FE

500 Series FG

500 Series GH

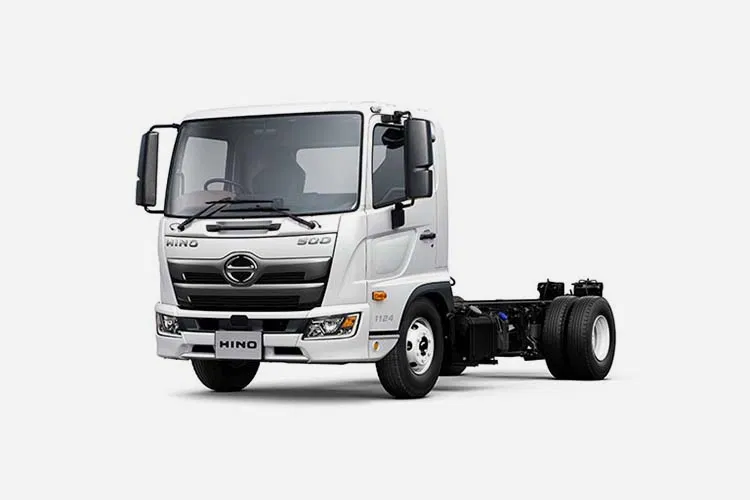

500 Series

HINO 500 Series

FC

STANDARD FEATURES

  • 11,000kg GVM
  • 240hp
  • Auto & Manual Options
  • Leaf Spring Suspension
  • Tipper Variants
View The Full Range View Video

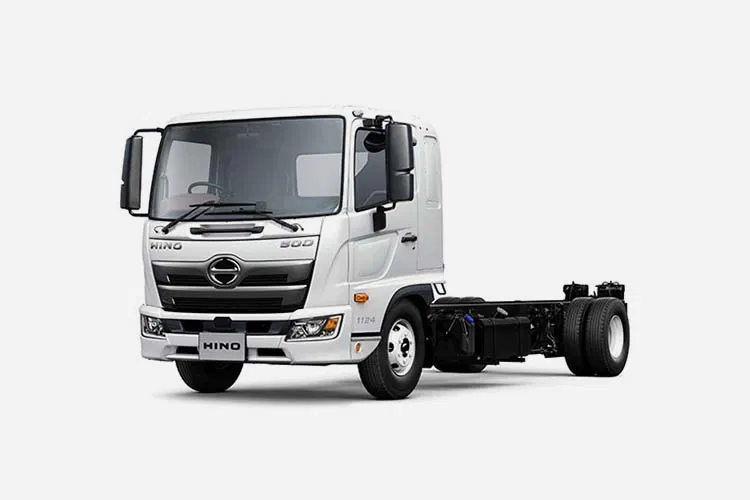

500 Series

HINO 500 Series

FD

STANDARD FEATURES

  • 11,000kg GVM
  • 240hp
  • 6 Speed Manual
  • Leaf Spring Suspension
  • Crew Variants
View The Full Range View Video

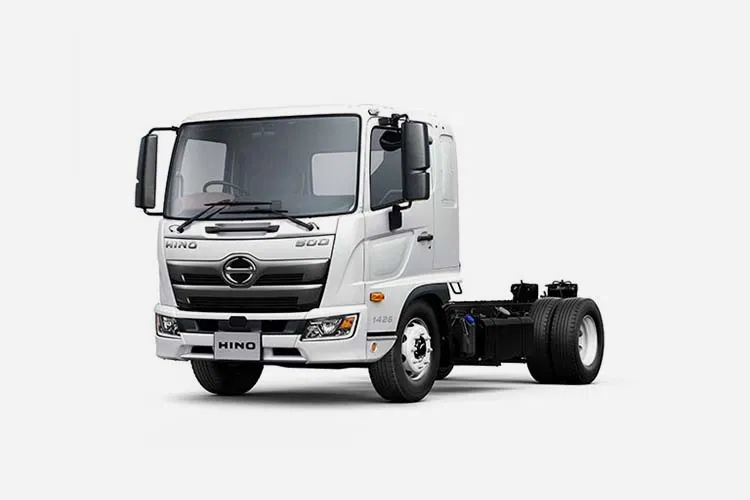

500 Series

HINO 500 Series

FE

STANDARD FEATURES

  • 12,000-14,000kg GVM
  • 240-260hp
  • Auto & Manual Options
  • Leaf Spring or Air Suspension
  • Crew & Tipper Variants
View The Full Range View Video

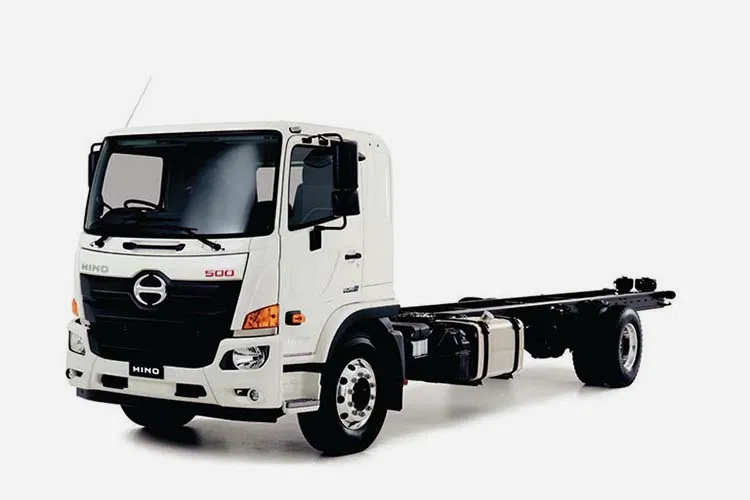

500 Series

HINO 500 Series

FG

STANDARD FEATURES

  • 16,000kg GVM
  • 280hp
  • Auto & Manual Options
  • Leaf Spring or Air Suspension
View The Full Range View Video

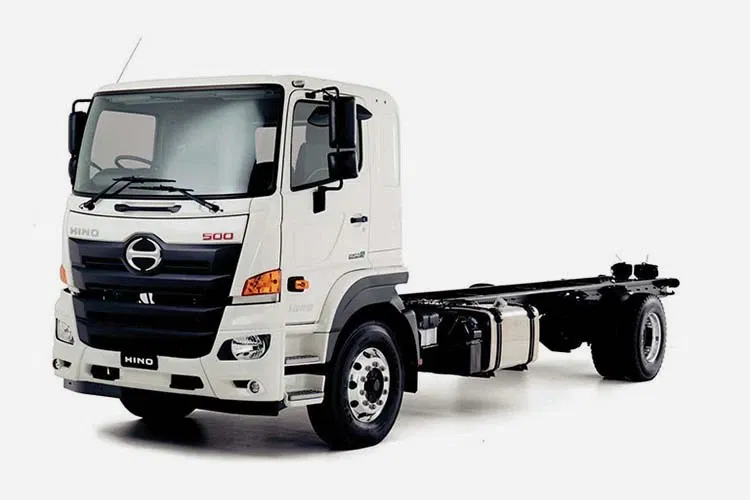

500 Series

HINO 500 Series

GH

STANDARD FEATURES

  • 18,000kg GVM
  • 280-350hp
  • Auto & Manual Options
  • Leaf Spring or Air Suspension
View The Full Range View Video

500 Series GT

500 Series

HINO 500 Series

4X4 Wide

STANDARD FEATURES

  • 14,500kg GVM
  • 280hp
  • 5 Speed Auto
  • Leaf Spring Suspension
View The Full Range View Video

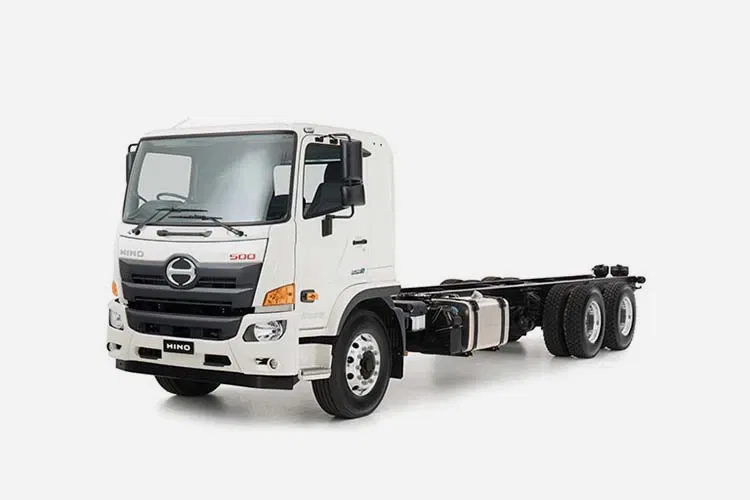

500 Series FL

500 Series

HINO 500 Series

FL

STANDARD FEATURES

  • 18,000-26,000kg GVM
  • 280hp
  • 6 Speed Auto
  • Air Suspension
View The Full Range

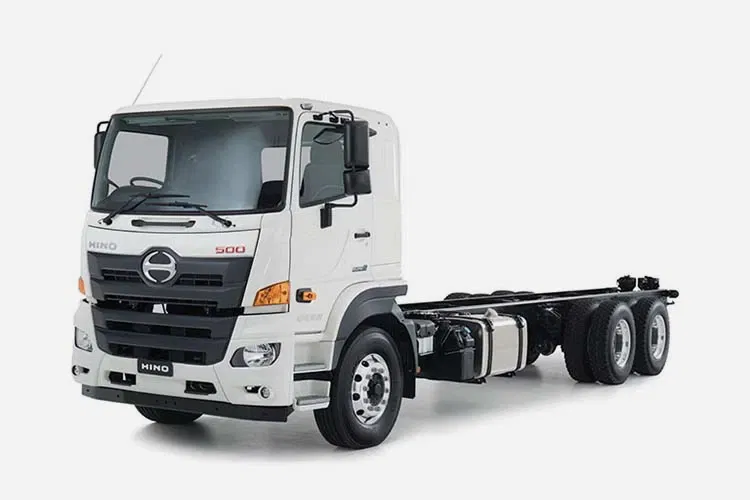

500 Series FM

500 Series

HINO 500 Series

FM

STANDARD FEATURES

  • 26,000kg GVM
  • 280-350hp
  • Auto & Manual Options
  • Leaf Spring or Air Suspension
View The Full Range View Video

Model Specifications

Filter models

wdt_ID Model Axle Config. GVM (KG) HP Transmission Rear Suspension Wheelbase (MM) Spec Sheet Chassis Drawing Transmission FILTER
1 FC 1124 AT AIR 4990 4x2 11,000 240 6 SPEED AUTO AIR 4,990 AUTOMATIC
2 FC 1124 MT SPRING 3430 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 3,420 MANUAL
3 FC 1124 MT SPRING 3850 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 3,850 MANUAL
4 FC 1124 MT SPRING 3850 TIPPER 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 3,850 MANUAL
5 FC 1124 MT SPRING 4350 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 4,350 MANUAL
6 FC 1124 MT SPRING 4990 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 4,990 MANUAL
7 FD 1124 MT SPRING 4290 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 4,290 MANUAL
8 FD 1124 MT SPRING 4890 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 4,890 MANUAL
9 FD 1124 MT SPRING 5540 CREW 4x2 11,000 240 6 SPEED MANUAL LEAF SPRING 5,540 MANUAL
10 FE 1424 AT SPRING 5540 CREW 4x2 14,000 240 6 SPEED AUTO LEAF SPRING 5,540 AUTOMATIC
11 FE 1426 AT AIR 5540 4x2 14,000 260 6 SPEED AUTO AIR 5,540 AUTOMATIC
12 FE 1426 AT SPRING 3790 4x2 14,000 260 6 SPEED AUTO LEAF SPRING 3,790 AUTOMATIC
13 FE 1426 AT SPRING 4890 4x2 14,000 260 6 SPEED AUTO LEAF SPRING 4,890 AUTOMATIC
14 FE 1426 MT AIR 4890 4x2 14,000 260 7 SPEED MANUAL AIR 4,890 MANUAL
15 FE 1426 MT AIR 5540 4x2 14,000 260 7 SPEED MANUAL AIR 5,540 MANUAL
16 FE 1426 MT SPRING 4290 4x2 14,000 260 7 SPEED MANUAL LEAF SPRING 4,290 MANUAL
17 FE 1426 MT SPRING 4290 TIPPER 4x2 14,000 260 7 SPEED MANUAL LEAF SPRING 4,290 MANUAL
18 FE 1426 MT SPRING 4890 4x2 14,000 260 7 SPEED MANUAL LEAF SPRING 4,890 MANUAL
19 FG 1628 AT SPRING SHORT 4x2 16,000 280 6 SPEED AUTO LEAF SPRING 3,730 AUTOMATIC
20 FG 1628 AT SPRING MEDIUM 4x2 16,000 280 6 SPEED AUTO LEAF SPRING 4,330 AUTOMATIC
21 FG 1628 AT SPRING LONG 4x2 16,000 280 6 SPEED AUTO LEAF SPRING 5,530 AUTOMATIC
22 FG 1628 MT AIR LONG 9-SPD 4x2 16,000 280 9 SPEED MANUAL AIR 5,550 MANUAL
23 FG 1628 MT SPRING MEDIUM 4x2 16,000 280 6 SPEED MANUAL LEAF SPRING 4,330 MANUAL
24 FG 1628 MT SPRING LONG 4x2 16,000 280 6 SPEED MANUAL LEAF SPRING 5,530 MANUAL
25 FL 2628 AT AIR 6515 6x2 26,000 280 6 SPEED AUTO AIR 6,515 AUTOMATIC
26 FM 2628 AT AIR LONG 6x4 26,000 280 6 SPEED AUTO AIR 5,310 AUTOMATIC
27 FM 2628 AT 6-ROD MEDIUM 6x4 26,000 280 6 SPEED AUTO LEAF SPRING 4,255 AUTOMATIC
28 FM 2628 MT 6-ROD MEDIUM 6x4 26,000 280 9 SPEED MANUAL LEAF SPRING 4,255 MANUAL
36 GH 1828 AT AIR MEDIUM LONG 4x2 18,000 280 6 SPEED AUTO AIR 5,100 AUTOMATIC
Axle Config. GVM (KG) HP Wheelbase (MM) Transmission FILTER
